TA Balk

Worxsafe's Urban Barrier has become the standard for medium-duty temporary barriers. The patented coupling device and replaceable rails make it easy to place and assemble as a system. The Urban Barrier meets EN-1317 with performed crash tests in capacity class T1 and is tested and calculated according to EN-13374-A. Associated fasteners for Worxsafe's yellow AT-Fence make the Urban Barrier a leading example within the new Swedish standard SS-7750-1 for pedestrian and bicycle traffic.

Switchable barrier in for temporary road works. Hot-dip galvanized construction with a solid concrete base.

Urban Barrier 2.85m - 833000

Connectable barrier in the medium-heavy class with a focus on easy assembly and safety. All in a durable hot-dip galvanized design with a solid concrete base.

- Weight: 435 kg
- Length: 2850 mm
- Height: 1100 mm

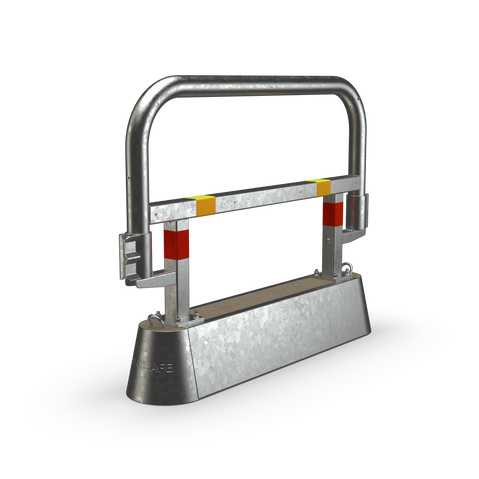

Switchable barrier in for temporary road works. Hot-dip galvanized railings and concrete foundations.

Urban Barrier 1.4m - 833002

Connectable barrier in the medium-heavy class with a focus on simple assembly and safety.
Hot-dip galvanized construction with a solid concrete base.
Half-length model for flexibility and tight spaces.

- Weight: 205 kg
- Length: 1400 mm
- Height: 1100 mm

Accessories TA-Balk

Use the Urban Barrier as high-class protection for pedestrians and cyclists with AT-Fence. Here you will also find specifically adapted lifting yokes, X3 mounts, reflectors and spare rails.

Railing for TA-Balk offers protection for pedestrians and cyclists during road work. Approved for SS-7750-1.

AT-Fence 2.1 m - 833191

With AT-Fence mounted on the Urban Barrier, the barrier provides high-class protection for pedestrians and cyclists. There are no weights or feet sticking out towards the traffic, which also minimizes the risk of tripping. When set up with AT-Fence, the Urban Barrier is approved for swedish SS-7750-1 in classes 1, 2, and 3.

- Weight: 12.5 kg
- Length: 2.1 m
- Height: 1.4 m

AT-Fence 1.4 m - 833075

With AT-Fence installed on Urban Barrier, the barrier gets high-class protection for pedestrians and cyclists. The absence of weights or feet protruding into traffic also minimizes the risk of tripping. When installed with AT-Fence, the Urban Barrier is approved according to swedish SS-7750-1 in Class 1, 2, and 3.

- Weight: 9.5 kg
- Length: 1.4 m
- Height: 1.4 m

Complete assembly kit to quickly and easily anchor the GC Rail to your TA beam.

Urban Barrier - AT-Fence Fastening Kit - 833252

Complete kit for quickly and easily anchoring the AT-Fence to your Urban Barrier. With the AT-Fence, the barrier is ensured to meet Class 3 in swedish SS-7750-1. Information on how to attach the AT-Fence to the Urban Barrier can be found in the Urban Barrier's product sheet.

Aids for lifting heavy products during temporary protection during road works, eg Urban Barrier.

Urban Barrier - Lifting Yoke - 833227

For safe lifting, always use Worxsafe's lifting yoke specially adapted for Urban Barrier.

- Weight 7.5 kg
- Height 360 mm
- Width 305 mm
- Lifting capacity: Max 450 kg

Aids for lifting heavy foundations for temporary protection during road works, eg TA-Balk.

Urban Barrier - Lifting Yoke Grapler - 833340

For safe lifting, always use Worxsafe's lifting yoke specifically adapted for Urban Barrier. The lifting yoke grapler is used together with a claw.

- Weight 17 kg
- Height 560 mm
- Width 305 mm
- Lifting capacity: Max 450 kg

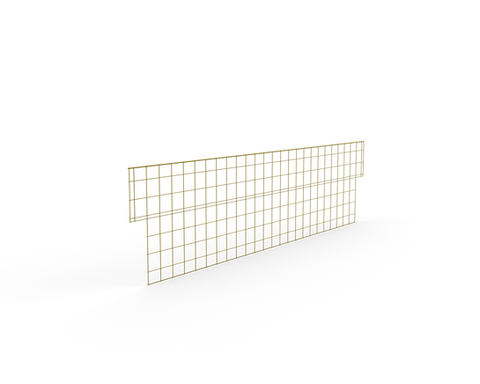

Guard rail for TA-Balk when blocking off road work protection for pedestrians and cyclists. Approved for SS-7750-1.

Urban Barrier - Safety Net - 833172

Mesh net for Urban Barrier to increase safety for pedestrians and cyclists when AT-Fence is not used.
- Weight: 2.5 kg
- Length: 2710 mm
- Height: 655 mm

Replacement railing for Urban Barrier. Made easily with eight screws in the concrete base.

Urban Barrier - Railing 2.85m - 832833

If an accident occurs and the railing on your Urban Barrier 2.85 m needs to be replaced, it can easily be done with eight screws in the concrete base.

- Weight: 53 kg
- Length: 2.85
- Height: 0.85 m

Replacement railing for TA-Balk. Made easily with eight screws in the concrete base.

Urban Barrier - Railing 1.4m - 833037

If the accident happens and the railing on your Urban Barrier 1.4 m needs to be replaced, it is easily done with eight screws in the concrete base.

- Weight: 32.5 kg
- Length: 1.4 m
- Height: 0.85 m

Reflex for temporary road barriers that apply in Sweden according to European standards.

Urban Barrier - Sweden reflex - 8341148

Reflex for Sweden which is attached horizontally to the middle rail of the barrier for increased visibility. According to European standards. The reflector consists of high-quality Dimond Grade 3M reflective tape.

- Weight: 0.4 kg
- Length: 1359 mm
- Height: 50 mm

Urban Barrier - Europe Reflex - 8341148

Reflex for Europe which is attached horizontally to the middle rail of the barrier for increased visibility. According to European standards. The reflector consists of high-quality Dimond Grade 3M reflective tape

- Weight: 0.4 kg
- Length: 1359 mm
- Height: 50 mm

Holder for X3 to blame. Easy to mount vertically in the TA-Balken railing.

TA-Balk - X3 Attachment - 831059

Holder for X3 sign. Easy to mount vertically on the Urban Barrier railing.

- Weight: 0.55 kg
- Height: 0.6 m

Bracket for setting up with construction fence.

Urban Barrier - Fence Bracket - 832093

Bracket for setting up construction fence on Urban Barrier.

- Weight: 0.9 kg

Urban Barrier - End Fence Bracket - 832094

End bracket for construction fence setup.

- Weight: 1 kg
